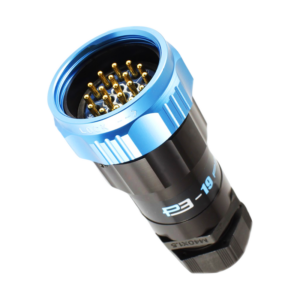

Showsafe 19 Pin Connector

Product Description

Phase 3‘s Showsafe range of UL-approved multi-pin connectors have been developed to deliver the highest levels of reliability and safety. Available in 3, 5, 7 and 19 Pin formats for the events industry. The super robust construction of the circular connectors ensures reliable operation. The rugged design has been tailored specifically for professional touring applications and all connectors are fully socapex compatible.

Showsafe Connector features:

Spider clamp The Showsafe Spider Clamp offers cable strain relief combined with watertight sealing when using 6 individual cables in breakout applications. The design incorporates our “Spider Trap” mechanical grip mechanism which individually grips each cable jacket. The trap can be quickly and easily orientated to facilitate different cable diameters. A separate silicone grommet ensures a watertight assembly.
Grub Screw Backshells are supplied with left-hand threads, which when torqued correctly during assembly will remain secure. For added security, the shells also include a grub screw which can be tightened to lock the shell.
Thick-Walled Coupling Nuts For maximum impact and wear resistance, coupling rings have thick wall sections and are machined from high grade alloys with an anodised finish. The ergonomic grip allows for easy mating in all conditions, various colours are available on request.
Insert Marking Inserts are marked with the industry standard 6 circuit wiring, identifying Earth, Neutral and Live pin positions.

Showsafe Connectors are sealed to IP67 when mated, making them water and dust proof for festivals worldwide. The sand of Benicassim? The mud and rain of Glastonbury? No problem. The socapex-type connectors are tough for touring. The aluminium body has a black anodised, non-conductive finish that offers scratch resistance and features a heavy-duty ribbed coupling ring. For ease of use, Showsafe have six-circuit identification on both sides of the insert; a recessed area in the back of the insert is provided to accept grounding rings. The connectors are available in both Inline and panel mount versions in male or female form. Excellent connections are ensured with a multi-point gold-plated contact in either solder or crimp. As one of the most adaptable stage connectors in the events industry, they accommodate wire sizes from 12 to 14 AWG (1.5-2.5mm²).

Additional Information

Weight	0.35 kg
Gender	Male, Female
Termination	Solder, Crimp
Clamping Range	10-16mm (M40A Gland + bush), 16-28mm (M40A Gland + bush), 22-32mm (M40B Gland), 1.5mm Cable Spider Clap, 2.5mm Cable Spider Clap
