Types of Electrical Power Connectors

What are Electrical Power Connectors?

When it comes to electronics, power is essential. Electrical power connectors are the link between a device and its source of power. In electronics, electrical power connectors are what you plug into a device’s receptacle. Depending on the amount of current and type of cable or wire, different connectors are used.

Electrical power sources can range in size from small batteries to large power grids, therefore, connectors that allow the transmission of electricity vary in form. Depending on the electrical current carried and the purpose of the application, one of several types of power connectors may be appropriate. To better understand which connector is best-suited for a particular purpose, it’s helpful to examine how electrical power connectors are classified and the capabilities of each variant.

Power Connector Classifications

Generally, electrical power connectors are classified according to how much voltage they carry. There are three categories of electrical connectors: light duty, medium duty, and heavy duty. Each category heading refers to how much voltage the connector can handle.

Light Duty Electrical Power Connectors

A light-duty electrical power connector can carry up to 250 volts (V) of a low current. However, if contact resistance doesn’t stay low and stable, the ability of the device to transmit current may be compromised. It’s important to minimize the presence of external contaminants on connector contacts (such as dirt, dust, and water) because the component is prone to oxidation and contaminants can catalyze the process. Power connectors found in cars, radio and communication devices, and those intended for basic instruments are all classified as light-duty power connectors.

Medium Duty Electrical Power Connectors

A medium-duty power connector carries a higher-level electrical current at up to 1,000 V.  Unlike low-duty connectors, medium duty variants can suffer from electrical wear if the contact material isn’t carefully monitored to prevent involuntary welding and erosion. Thus, proper material selection is critical in ensuring the device’s integrity. Medium-duty can be found in an array of domestic and industrial applications.

Heavy Duty Electrical Power Connectors

Heavy-duty connectors carry high-level currents in the range of hundreds of kilovolts (kV). Because of the large load they can carry, heavy-duty connectors are effective in large-scale power distribution applications, as well as power management and protection systems, such as circuit breakers.

Electrical Power Connectors

Individual Types of Power Connectors

In addition to the three general categories of electrical power connectors, there are numerous individual connectors that fall under each heading. Some of these variants include:

AC Connectors

AC power connectors are mainly used to connect equipment to a wall outlet in order to power the device. Of the types of AC connectors, power plugs are for standard size devices while industrial AC power plugs are for larger industrial applications.

DC Connectors

Unlike AC connectors, DC connectors are not standardized. A DC plug, a variant of a DC connector, primarily supplies smaller electronic devices with power. Because there are different standards of DC plugs, it’s important not to accidently use incompatible variants.

Wire Connectors

The purpose of a wire connector is to bring two or more wires together at a common point of connection. Lugs, crimps, set screws, and split-bolt types are all examples of this variant.

Blade Connectors

Blade connectors feature a one wire connection—the blade connector is inserted into a blade receptacle and when the blade connector’s wire makes contact with the receptor’s wire a connection is made.

Plug and Socket Connectors

Plug and socket connectors consist of a male and female component which fit together snugly. A plug, the male component, is comprised of many pins and prongs, which when inserted into the female socket, securely latch on to corresponding contacts. These plugs often fit three phase or single phase applications and have specific wiring colour standards to identify the different lines like live wire, neutral wire etc.

Insulation-Piercing Connectors

Insulation piercing connectors are useful because they don’t require uncovered wires. Instead, a fully covered wire is inserted into the connector, and a small device inside the opening removes the wire’s covering as the wire slides into place. Then, the uncovered tip of the wire makes contact with the receptor, and electricity can be transmitted.

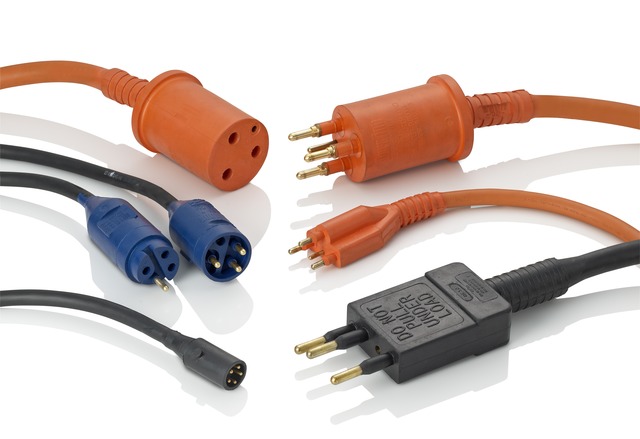

electrical power connectors

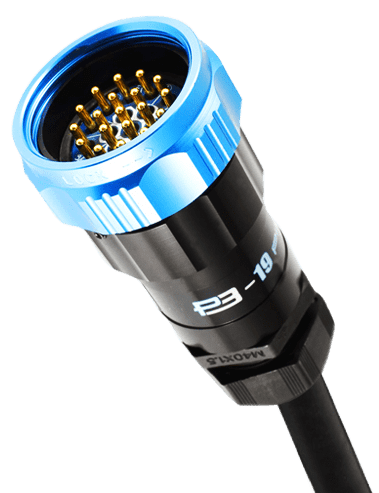

electrical power connector socapex
